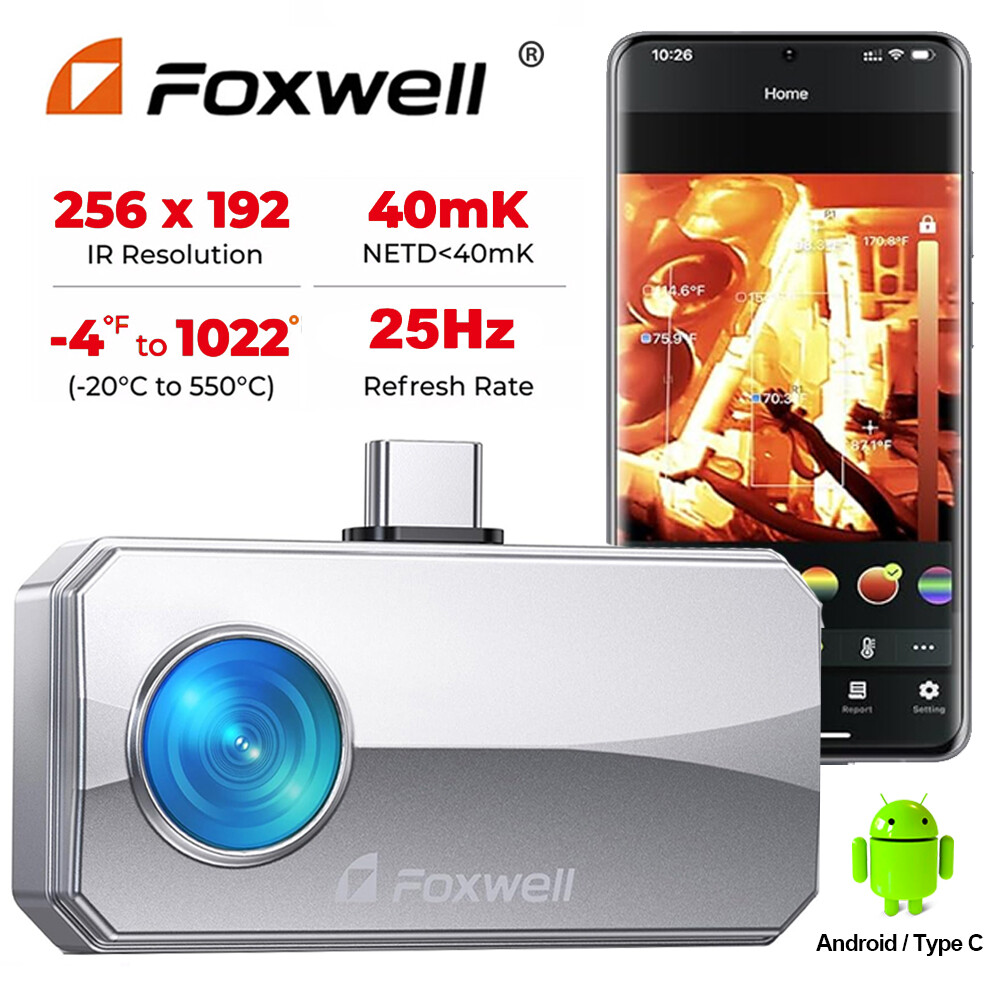

RT100 Home & Industry Infrared Thermal Imager 256x192 Thermal Camera for Android
Fast Shipping
Estimated delivery in 3-5 daysEasy Returns
30-day returns, buyer pays return shipping
What Does the FOXWELL RT100 Thermal Camera do？
-Air Leakage Inspection
-Water Leakage Inspection
-Electrical Inspection
-Cylinder Inspection
-Insulation Inspection
-Hive Inspection
-Greenhouse Inspection
-Protct Crops and Livestock
-Boat Inspection
-Frontier Inspection
-Boiler Inspection
-Supply Circuit Inspection
-Electrical Inspection
1. Display a clear thermal image with ultra-high infrared resolution of 256x192 pixels.
2. View detailed temperature changes with high heat sensitivity of 40mk.
3. Perform temperature detection with extreme accuracy, with a maximum of ±3.6℉ (2℃) temperature variance.
4. Read temperatures on objects ranging from -4℉ to 1022℉ (-20℃ to 550℃).
5. Manually select 3 dimensions to check temperature: Point, Line (Highest and Lowest), and Surface (Highest and Lowest).
6. Monitor temperature change by a waveform graph.
7. Choose from a variety of color palettes for a more interactive experience.
8. Adjustable upper and lower limits, and corresponding colors to view temperatures intuitively.
9. Spectral Range: 8~14μm, Pixel Size: 12μm, Frame Rate: 25Hz
Main Features:
【Extra-High Resolution:】FOXWELL RT100 Infrared Thermal Camera has 256x192 IR resolution, 25Hz refresh rate, ensuring smooth, clear thermal images, with no worries about image lag. It automatically detects center/highest/lowest temperatures, helping you easily identify anomalies. This thermal camera is the perfect tool for building inspections and automotive maintenance

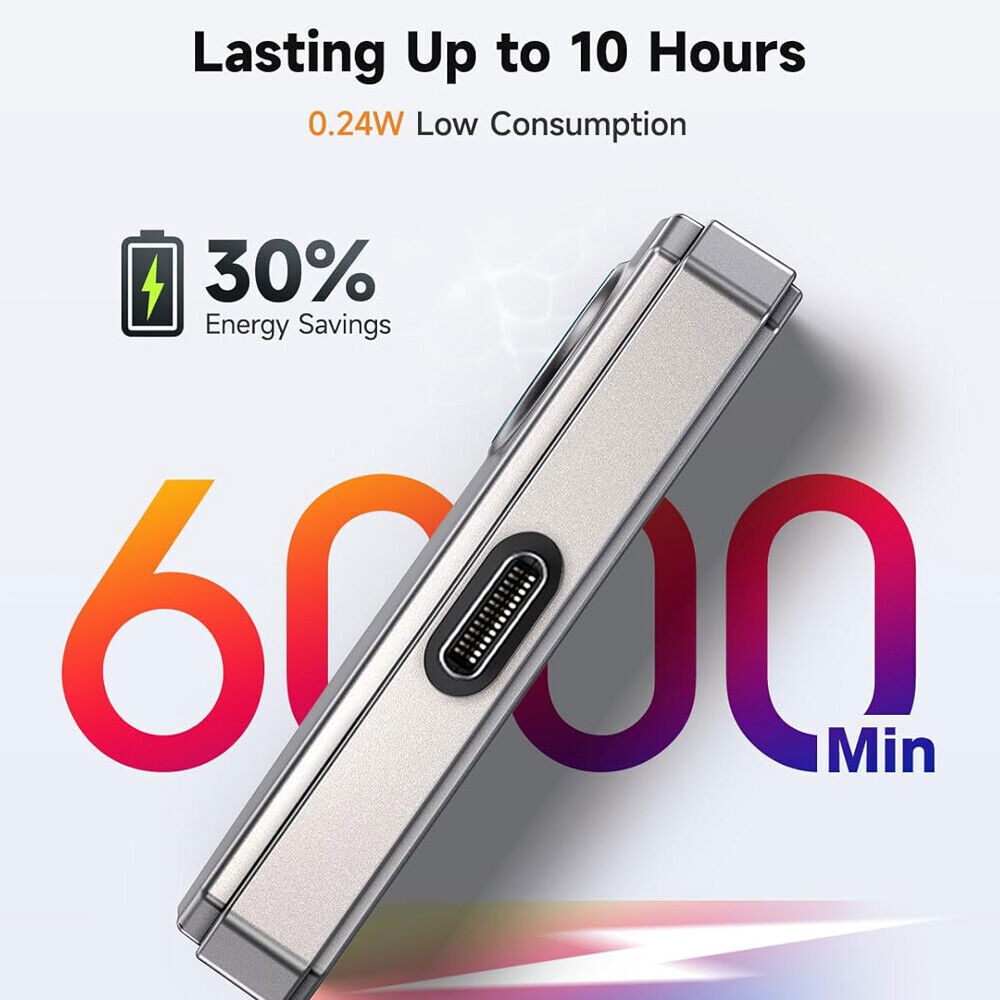

【Extended Use Up to 10 Hours 】:This infrared camera is plug-and-play, with ultra-low power consumption of just 0.24W. When used on a 3000-5000mAh smartphone, it offers 6-10 hours of battery life, lasting 2-3 hours longer than similar products while reducing power consumption by 30%. This makes our android thermal camera more durable and reliable, eliminating battery life concerns
【Accurate to 0.1°C Temperature Changes 】: RT100 thermal imaging camera has a wide temperature range of -4°F to 1022°F (-20°C to 550°C) with a measurement accuracy of ±3.6°F (±2°C) or 2%. It detects temperature changes as small as 0.1°C (32.18°F). This precise measurement helps you identify potential issues early and diagnose problems reliably. Auto captures hot and cold spots for quick anomaly detection
【Enhanced Image Quality 】: 3 image modes (Thermal, Dual Fusion, PIP) and 10 color palettes, catering to a wide range of application needs. Our image enhancement technology improves clarity by adjusting sharpness and contrast. Image fusion compares thermal images with your phone’s camera for clearer, more accurate analysis and quick anomaly detection
【Real-Time Anomaly Detection 】: FOXWELL thermal imager offers point, Line (Highest and Lowest) and Surface (Highest and Lowest) temperature waveform monitoring. It support set temperature alarms, monitor temperature spikes with colour flashes and tones, video recording, playback, 2D editing, and easy data report sharing. Ideal for professionals and home users, it provides accurate detection of temperature anomalies and greatly improves work efficiency

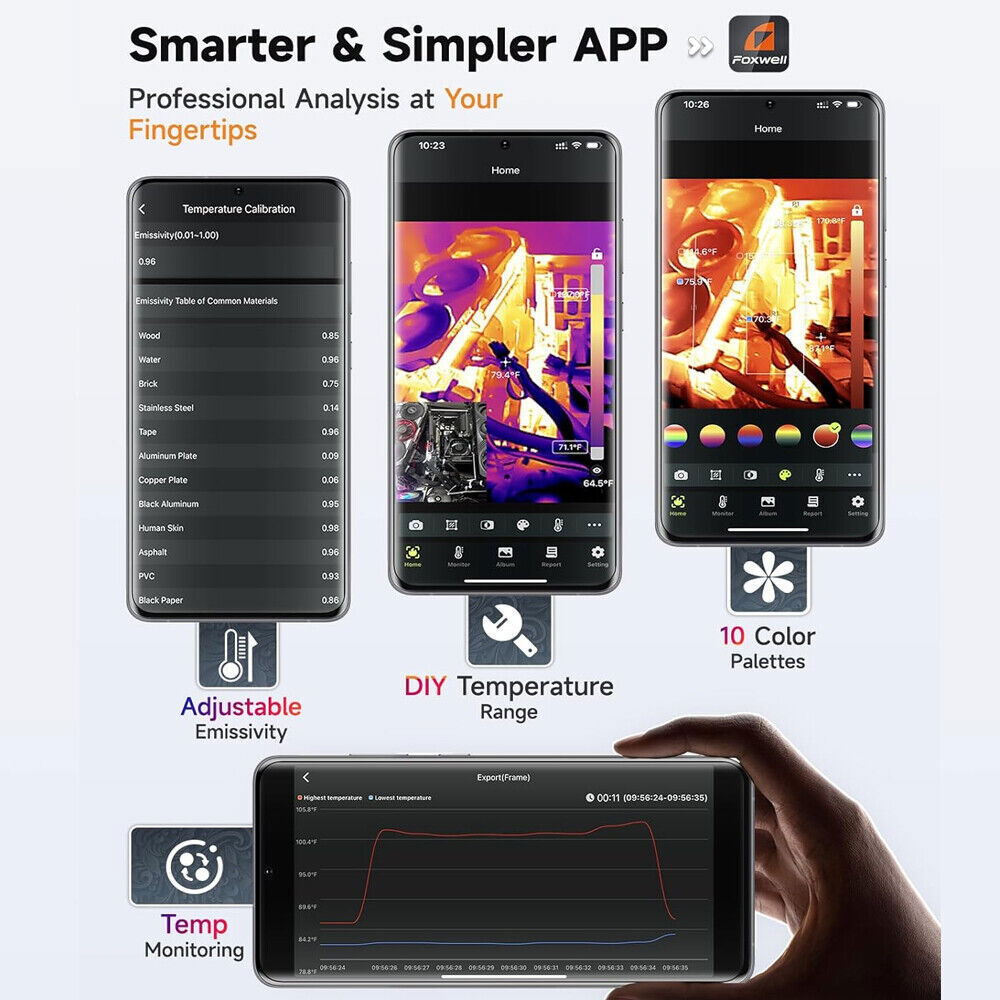

【Special Features】: FOXWELL RT100 IR camera incorporates unique temperature waveform monitoring, dual fusion (PIP mode), DIY pseudo-colors, temperature calibration, contrast, and sharpness adjustments and more. These functionalities cater to a diverse range of users, from professionals across various industries to homeowners seeking reliable thermal imagers
【Versatile Applications 】: This Infrared cameras thermal imaging can be used in a variety of applications including home inspections (heat loss, leaks), HVAC, automotive diagnostics, electrical systems, mechanical maintenance, outdoor adventures, wildlife observation, building, security monitoring, industrial inspection, etc. It also can spot objects in complete darkness to see the thermal world

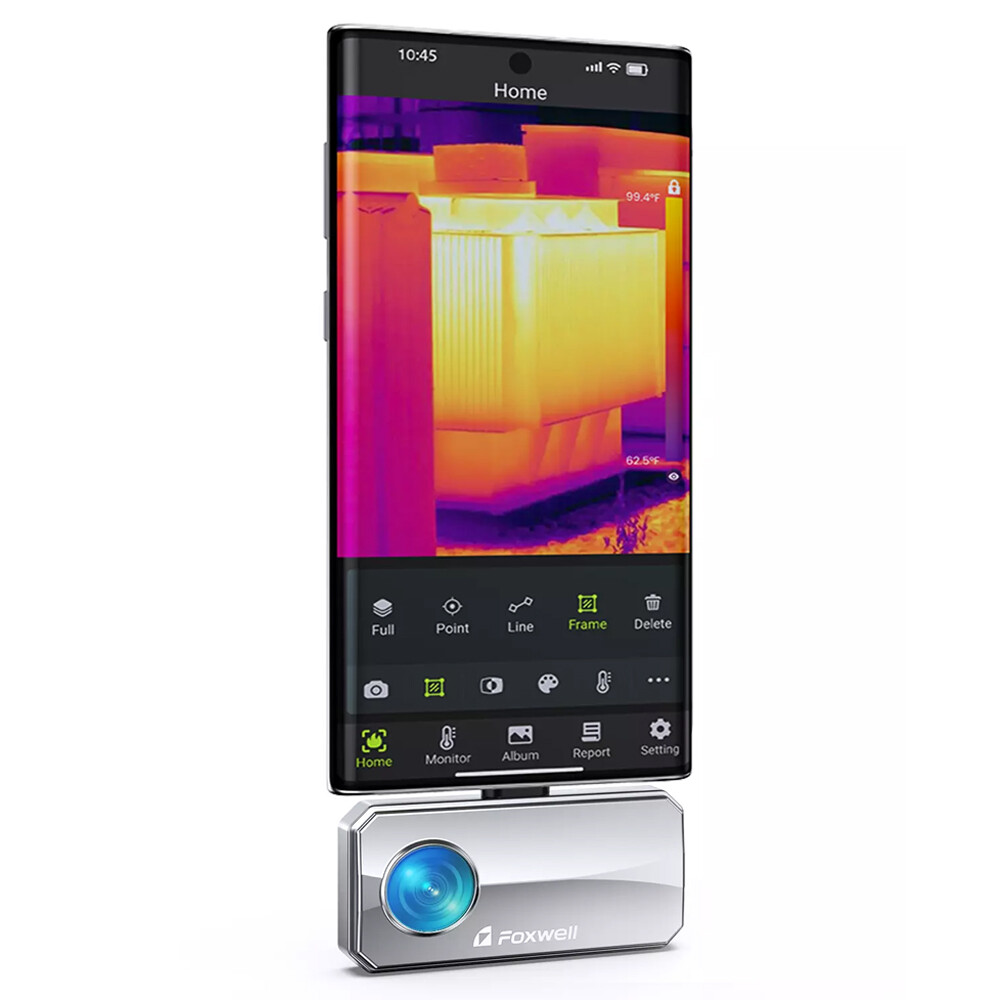

【Portable, Durable and Compatible 】Weighing just 1.4 oz, pocket-sized and easy to carry. It comes with a 25.4-inch USB cable for flexible inspection. Plug-and-play with no extra power needed—just download the the Foxwell RT100 Thermal app, connect it to your device, and turn your smartphone into a powerful thermal camera. Works seamlessly with smartphones, tablets, and PCs (only for Android). Note: On first install, the FoxIR app will request camera access. Grant the permission for proper thermal camera operation
【 How to install the application?】 Android App: Go to the Google Play on your Android phone, search for "FoxlR" to download the application. PC Software: Enter “wwwfoxwelltech.us" in your computer browser to download the PC installation package.
1. Sensor: uncooled oxide sail
2. Time rate: 0950 recognition),001-1.00 adjustable
3. Spectral Figure 8-14um
4. Resolution: 256X192
5. Pixel size 12um
6. Field of view Angle: 56X42°
7. Image frame rate 25Hz
8. IFOV. 3.75 mrad
9. Total distance 3.2mm
10. Sensitivity (50mK@25 ℃,F#1.0,25Hz)
11. Recommended temperature measurement distance south: 025-5m
12. Image mode: Thermal imaging. Fusion (fusion with phone camera images). Picture in picture
13. False color strip white heat, black heat, gold, iron red, shadow rainbow, shimmer, aurora red heat, jungle, medical
14. Temperature measuring gear: automatic cutting (default), any temperature (-20℃-150℃ or -4F-302F). High temperature (0℃-550℃ or -32F-1022F)
15. Temperature measurement range: -20℃-550℃(-4'F-1022F)
16. Humidity measurement accuracy: ±2℃(±3.6 below) or ±2% of the measured temperature maximum)
17. Protection and other garbage: IP54
18. Power consumption: <240mW
19. Working temperature: -10℃~75℃(-50F~167F)
20. Storage temperature: -45℃~85℃(-113F-185°F)

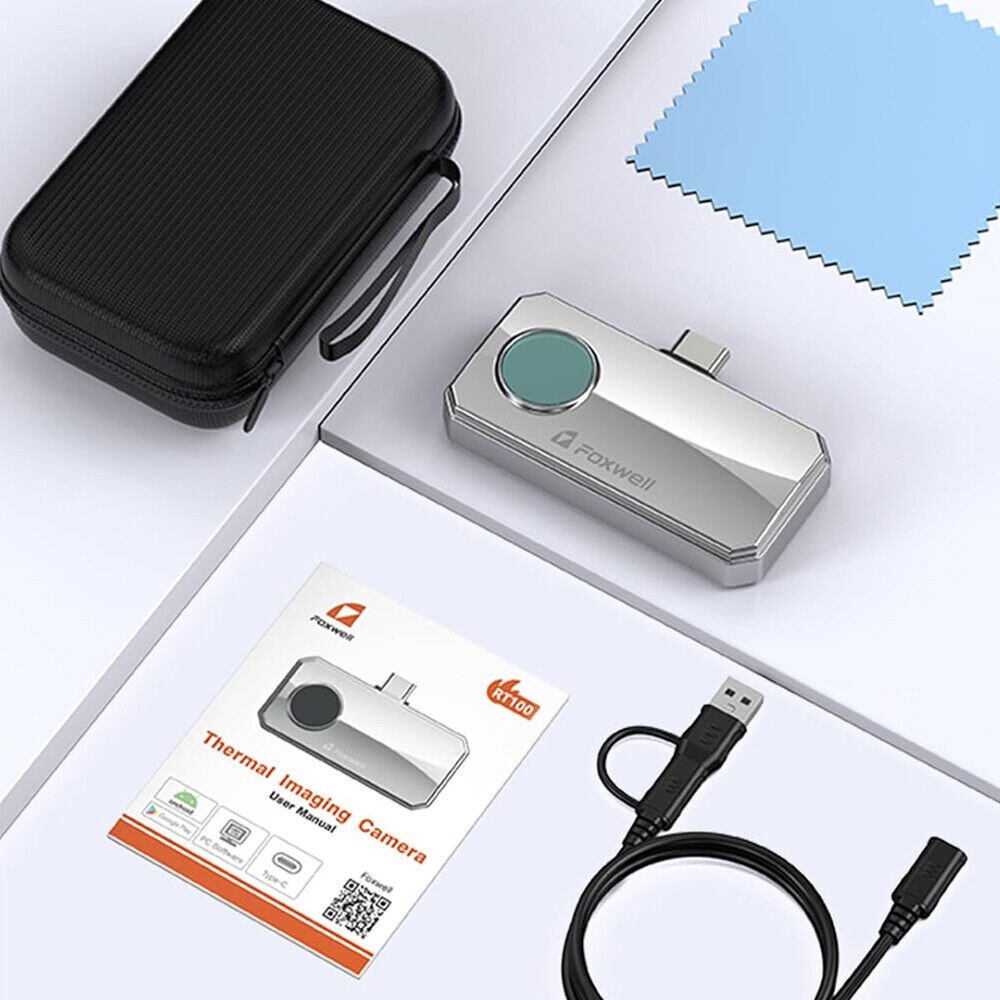

Packing List:
1 x RT100 Thermal Imaging Camera
1 x Multifunctional Adapter Cable
1 x Carrying Bag
1 x Cleaning Cloth
1 x Quick User Guide
All our items are 100% original and with warranty, tech support and updates service.
3 Year free repair for the devices.
Warranty automatically recorded once order placed.No need to register for warranty.
It is to avoid fake and counterfeit.
Please contact us firstly when you need warranty service.
In case an item arrives damaged or faulty, please contact us ASAP and keep it unused.
We will instruct you on how to return to get refund or replacement.
If the item has been used, we have the right to decline your claim.
Please send eBay message to us before return , we will apply Free Return, buy Return Shipping Label for you.
We are professional tool provider specialized inAutomotive Aftermarket On-Board Diagnostic & Service Tools:
Mileage Correction Tool,
Immobilizer Key Match Tool ,Key Maker, Car Locksmith Tool,
ECU Coding Programmer,
And Other automotive electronics
TPMS Progammer, TPMS Sensors, Battery Tester, Circuit Probe....
We are in the industry for more than 10 years.
Launch, Foxwell, Thinkcar, EUCLIA, Autek, ANCEL, Innova, Autophix, Kzyee, Fcar, Nexas...
and more brands will be available in our store in near future.
What Do We Provide?
3.Lifelong Free online tech support
We provide remote online assistance via TeamViewer, if you have any difficulty in software installation.
4.Our corporation is established for the purpose of trustworthiness. Your satisfaction is our priority,we assure you not only get quality products but also good service.
1.If you have any problem about the goods, please contact us before return or leaving Neutral/Negative feedback.We promise to help you solve it asap, and make you feel satisfied absolutely.
2. Our business time:
3.Please leave us Positive Feedback
and 5-stars ★★★★★ after you received our package you are satisfied with it. as you know, every seller works hard for the positive feedback. We will do the same as soon as we can too.
If you write a 5-stars ★★★★★Product Review in the listing page, it will help many other car owners to find suitable tools for sure.
| Brand | FOXWELL |
|---|---|
| MPN | FOXWELL RT100 Thermal Imaging Camera Infrared Thermal Imager |
| Model | FOXWELL RT100 For Android /Windows |
| Product | USB-C Thermal Camera Accessory |
| Temperature Range | -4℉ to 1022℉ |
| IR Sensor Resolution | 256 X 192 IR Sensor Resolution |
| Thermal Sensitivity | 40mK |
| Emissivity | Adjustable from 0.01 to 1.00 |
| Spectral Pattern | 8-14um |
| Pixel Size | 12um |
| Field Of View | 56°×42° |
| Image Frame Rate | 25Hz |
|---|---|
| IFOV. | 3.75 mrad |
| Continuous Work Time | 6-10 Hours |
| Shortest Focus Length | 3.2mm |
| Distance To Spot Ratio | 0.25-5m |
| Sensitivity | 50mK@25 ℃, F#1.0, 25Hz |
| Measurement Accuracy | ±2% |
| Protection Against Junk | IP54 |
| Power Consumption | <240mW |
| Type | Infrared Thermographic Camera |
